Normal twist hexagonal wire mesh machine

Product name：Normal twist hexagonal wire mesh machine

Item：GMWMA-108

Details：

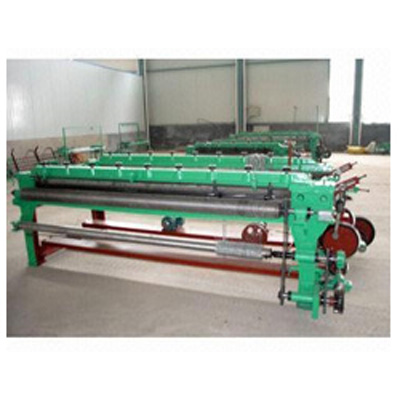

Normal twist hexagonal wire mesh machine

NW Series Wire Netting Machine is designed to produce hexagonal screens with galvanized low carbon steel wires, suitable for stuctural, heat insulation, protective and forcing applications. The machines of this series are of horizontal design, ensuring smooth running and high productivity.

Main parameter of Normal twist hexagonal wire mesh machine:

Opening	Wire dia range	Width
1/2''	0.38mm-0.70mm	2000mm
1"	0.40mm-0.80mm	2000mm
2"	0.40mm-1.00mm	2000mm
Power	380v 3.0 kw
Twisted number	3/5
Spindle speed	25 pieces/minute
Outside size	520025001500mm
Weight	2500kg
Marks	1/2" is one machine 1" and 2" can use the same machine 3" is impossible for normal twist hexagonal mesh

Auxiliary Machine for Clockwise and Counterclockwise twist hexagonal wire mesh machine:

1.Hexagonal twist machine

Power (kw)	1.1
Voltage (v)	380/220
Weight (kg)	150
Outside size(mm)	17005001550

2.Spooling machine
It serves to make wires into form of coils to be used as weft wires, on the Wire Netting Machine for purpose of producing hexagonal screens.

Main Parameter Of Spooling Machine:
